Double decoilers SCD

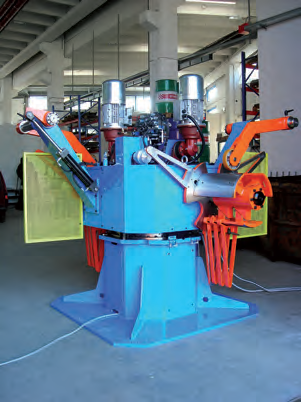

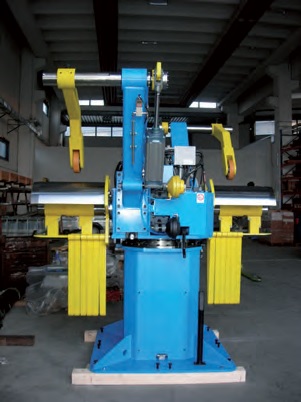

They are available in motorized and idle braked version, and they have the same construction features of the single decoilers. They are equipped of two spindles, mounted onto a 180° rotating turret. While the spindle in workind position is decoiling the strip, the opposite spindle can be loaded with a new coil. This helps decrease the time of inacticity when one coil is finished.

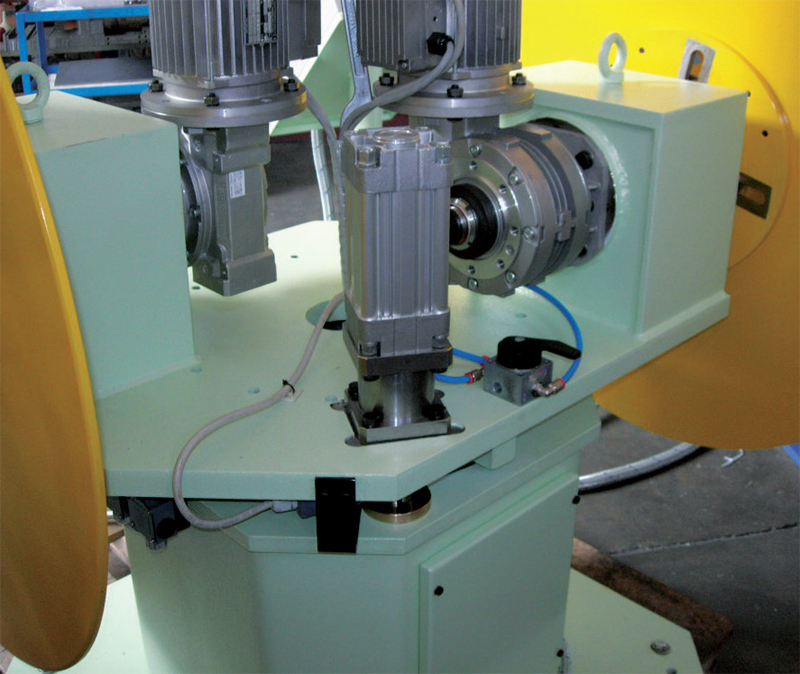

The turret rotation may be done manually or by motor, and its positioning is secured either by a mechanical device or by a pneumatic cylinder.
DOUBLE MOTORIZED DECOILERS WITH MANUAL SPINDLE EXPANSION AND MANUAL TURRET ROTATION
|
MODEL
|
STRIP WIDTH mm
|
MAX. LOAD T
|
EXTERNAL COIL DIAMETER mm
|
INTERNAL COIL DIAMETER mm
|
POWER ENGINE KW
|
VARIABLE SPEED
|
|
SCD 303M EM
|
300
|
2x 0,3
|
1500
|
370 - 630
|
|
|
|
SCD 305M EM
|
300
|
2x 0,5
|
1500
|
370 - 630
|
|
|
|
SCD 307M EM
|
300
|
2x 0,7
|
1500
|
370 - 630
|
|
|
|
SCD 310 M EM
|
300
|
2x 1
|
1500
|
370 - 630
|
|
|
|
SCD 415 M EM
|
400
|
2x 1,5
|
1600
|
370 - 630
|
|
|
|
SCD 515 M EM
|
500
|
2x 1,5
|
1600
|
370 - 630
|
|
|
|
SCD 615 M EM
|
600
|
2x 1,5
|
1600
|
370 - 630
|
|
|
|
SCD 420 M EM
|
400
|
2x 2
|
1800
|
370 - 630
|
|
|
|
SCD 520 M EM
|
500
|
2x 2
|
1800
|
370 - 630
|
|
|
|
SCD 620 M EM
|
600
|
2x 2
|
1800
|
370 - 630
|
|
|
|
SCD 530 M EM
|
500
|
2x 3
|
1800
|
370 - 630
|
|
|
|
SCD 630 M EM
|
600
|
2x 3
|
1800
|
370 - 630
|
|
|
DOUBLE MOTORIZED DECOILERS WITH HYDRAULIC SPINDLE EXPANSION AND MANUAL TURRET ROTATION
|
MODEL
|
STRIP WIDTH mm
|
MAX. LOAD T
|
EXTERNAL COIL DIAMETER mm
|
INTERNAL COIL DIAMETER mm
|
POWER ENGINE KW
|
VARIABLE SPEED
|
|
SCD 310 M EI
|
300
|
2x 1
|
1500
|
470 - 630
|
|
|
|
SCD 415 M EI
|
400
|
2x 1,5
|
1600
|
470 - 630
|
|
|
|
SCD 515 M EI
|
500
|
2x 1,5
|
1600
|
470 - 630
|
|
|
|
SCD 615 M EI
|
600
|
2x 1,5
|
1600
|
470 - 630
|
|
|
|
SCD 420 M EI
|
400
|
2x 2
|
1800
|
470 - 630
|
|
|
|
SCD 520 M EI
|
500
|
2x 2
|
1800
|
470 - 630
|
|
|
|
SCD 620 M EI
|
600
|
2x 2
|
1800
|
470 - 630
|
|
|
|
SCD 530 M EI
|
500
|
2x 3
|
1800
|
470 - 630
|
|
|
|
SCD 630 M EI
|
600
|
2x 3
|
1800
|
470 - 630
|
|
|
|
SCD 540 M EI
|
500
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD 640 M EI
|
600
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD 840 M EI
|
800
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD1040 M EI
|
1000
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD1240 M EI
|
1200
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD1540 M EI
|
1500
|
2x 4
|
2000
|
470 - 630
|
|
|
|
SCD 650 M EI
|
600
|
2x 5
|
2000
|
470 - 630
|
|
|
|
SCD 850 M EI
|
800
|
2x 5
|
2000
|
470 - 630
|
|
|
|
SCD1050 M EI
|
1000
|
2x 5
|
2000
|
470 - 630
|
|
|
|
SCD1250 M EI
|
1200
|
2x 5
|
2000
|
470 - 630
|
|
|
|
SCD1550 M EI
|
1500
|
2x 5
|
2000
|
470 - 630
|
|
|
|
SCD 660 M EI
|
600
|
2x 6
|
2000
|
470 - 630
|
|
|
|
SCD 860 M EI
|
800
|
2x 6
|
2000
|
470 - 630
|
|
|
|
SCD1060 M EI
|
1000
|
2x 6
|
2000
|
470 - 630
|
|
|
|
SCD1260 M EI
|
1200
|
2x 6
|
2000
|
470 - 630
|
|
|
|
SCD1560 M EI
|
1500
|
2x 6
|
2000
|
470 - 630
|
|
|
ACCESSORIES
 hydraulic coil loader from 1 to 3 Ton with vertical stroke of 350 mm
hydraulic coil loader from 4 to 6 Ton with vertical stroke of 300 mm
hydraulic coil loader from 4 to 6 Ton with verticla stroke of 500 mm
pneumatic or hydraulic, idle or motorized pressing arm
negative emergency brake on each spindle
removible push-buttons panel with 4 or 8 controls
loop control with laser cell
motorized turret rotation
DOUBLE IDLE DECOILERS WITH MANUAL SPINDLE EXPANSION AND MANUAL TURRET ROTATION.
|
MODEL
|
STRIP WIDTH mm
|
MAX. LOAD T
|
EXTERNAL COIL DIAMETER mm
|
INTERNAL COIL DIAMETER mm
|
BREAK DISC WITH MANUAL REGULATION
|
|
SCD 303 F EM
|
300
|
2x 0,3
|
1500
|
370 - 630
|
incluso |
|
SCD 305 F EM
|
300
|
2x 0,5
|
1500
|
370 - 630
|
incluso |
|
SCD 307 F EM
|
300
|
2x 0,7
|
1500
|
370 - 630
|
incluso |
|
SCD 310 F EM
|
300
|
2x 1,0
|
1500
|
370 - 630
|
incluso |
|
SCD 415 F EM
|
400
|
2x 1,5
|
1600
|
370 - 630
|
incluso |
|
SCD 515 F EM
|
500
|
2x 1,5
|
1600
|
370 - 630
|
incluso |
|
SCD 615 F EM
|
600
|
2x 1,5
|
1600
|
370 - 630
|
incluso |
|
SCD 420 F EM
|
400
|
2x 2,0
|
1800
|
370 - 630
|
incluso |
|
SCD 520 F EM
|
500
|
2x 2,0
|
1800
|
370 - 630
|
incluso |
|
SCD 620 F EM
|
600
|
2x 2,0
|
1800
|
370 - 630
|
incluso |
|
SCD 530 F EM
|
500
|
2x 3,0
|
1800
|
370 - 630
|
incluso |
|
SCD 630 F EM
|
600
|
2x 3,0
|
1800
|
370 - 630
|
incluso |
DOUBLE IDLE DECOILERS WITH HYDRAULIC SPINDLE EXPANSION AND MANUAL TURRET ROTATION
|
MODEL
|
STRIP WIDTH mm
|
MAX. LOAD T
|
EXTERNAL COIL DIAMETER mm
|
INTERNAL COIL DIAMETER mm
|
BREAK DISC WITH MANUAL REGULATION
|
|
SCD 310 F EI
|
300
|
2x 1
|
1500
|
470 - 630
|
|
|
SCD 415 F EI
|
400
|
2x 1,5
|
1600
|
470 - 630
|
|
|
SCD 515 F EI
|
500
|
2x 1,5
|
1600
|
470 - 630
|
|
|
SCD 615 F EI
|
600
|
2x 1,5
|
1600
|
470 - 630
|
|
|
SCD 420 F EI
|
400
|
2x 2
|
1800
|
470 - 630
|
|
|
SCD 520 F EI
|
500
|
2x 2
|
1800
|
470 - 630
|
|
|
SCD 620 F EI
|
600
|
2x 2
|
1800
|
470 - 630
|
|
|
SCD 530 F EI
|
500
|
2x 3
|
1800
|
470 - 630
|
|
|
SCD 630 F EI
|
600
|
2x 3
|
1800
|
470 - 630
|
incluso |
|
SCD 540 F EI
|
500
|
2x 4
|
2000
|
470 - 630
|
freno pneumatico |
|
SCD 640 F EI
|
600
|
2x 4
|
2000
|
470 - 630
|
|
|
SCD 840 F EI
|
800
|
2x 4
|
2000
|
470 - 630
|
|
|
SCD1040 F EI
|
1000
|
2x 4
|
2000
|
470 - 630
|
|
|
SCD1240 F EI
|
1200
|
2x 4
|
2000
|
470 - 630
|
|
|
SCD1540 F EI
|
1500
|
2x 4
|
2000
|
470 - 630
|
|
|
SCD 650 F EI
|
600
|
2x 5
|
2000
|
470 - 630
|
|
|
SCD 850 F EI
|
800
|
2x 5
|
2000
|
470 - 630
|
|
|
SCD1050 F EI
|
1000
|
2x 5
|
2000
|
470 - 630
|
|
|
SCD1250 F EI
|
1200
|
2x 5
|
2000
|
470 - 630
|
|
|
SCD1550 F EI
|
1500
|
2x 5
|
2000
|
470 - 630
|
|
|
SCD 660 F EI
|
600
|
2x 6
|
2000
|
470 - 630
|
|
|
SCD 860 F EI
|
800
|
2x 6
|
2000
|
470 - 630
|
|
|
SCD1060 F EI
|
1000
|
2x 6
|
2000
|
470 - 630
|
|
|
SCD1260 F EI
|
1200
|
2x 6
|
2000
|
470 - 630
|
|
|
SCD1560 F EI
|
1500
|
2x 6
|
2000
|
470 - 630
|
|
ACCESSORIES
hydraulic coil loader from 1 to 3 Ton with vertical stroke of 350 x 1200 mm
hydraulic coil loader from 4 to 6 Ton with vertical stroke of 300 x 2000 mm
hydraulic coil loader from 4 to 6 Ton with vertical stroke of 500 x 2000 mm
pneumatic or hydraulic, idle or motorized prssing arm
negative emergency brake on each spindle
removible push-buttons panel with 4 or 8 controls
pneumatic brake with manual registration on each spindle
proportional valve and ultrasound sensor for braking accordingly to the coil diameter
introduction hydraulic engine
|
